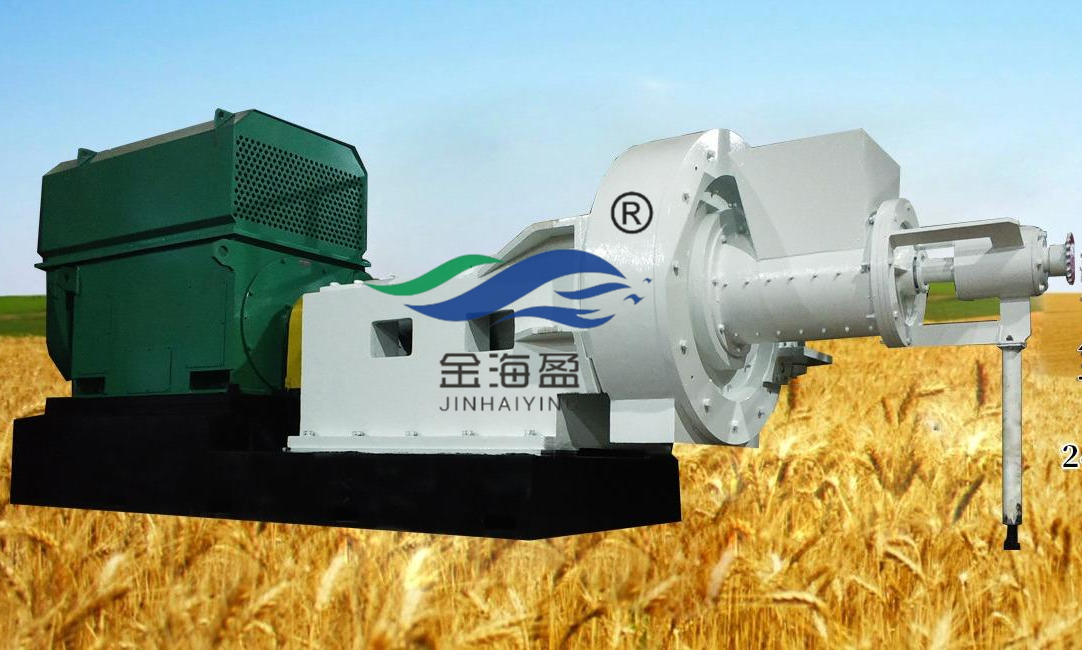

秸稈粗磨分絲機 Straw coarse grinding and defibering machine

一、設備簡介：

   JGS系列自動控制秸稈粗磨分絲機，是我公司自主研發的一款新型高濃度進料、節能型粗磨分絲設備，該設備為液壓自動化控制，具有操作靈活、移動精度高、反應靈敏等優點。磨機靜磨盤采用特殊材料配置、按磨盤模具尺寸壓制成形、經過高溫燒制定型制造，具有硬度高、耐磨損的特點。表面類似于磨刀石，無論怎樣磨損表面始終象石頭表面一樣略帶粗糙，所以在對秸稈的研磨過程中盡量避免纖維被切斷，保持纖維長度。分絲效果特別好。

一、Brief introduction of equipment：

JGS series automatic control straw coarse grinding and shredding machine is a new type of high-concentration feeding and energy-saving coarse grinding and shredding equipment independently developed by our company. The equipment is hydraulic automatic control and has the advantages of flexible operation, high moving accuracy and sensitive response。The static grinding disc of the mill is made of special materials, pressed and shaped according to the size of the grinding disc die, and fired and shaped at high temperature, which has the characteristics of high hardness and wear resistance。The surface is similar to a grindstone, no matter how worn, the surface is always slightly rough like the stone surface, so try to avoid the fiber being cut off and keep the fiber length in the grinding process of straw。The fiber splitting effect is particularly good。

二、秸稈粗磨分絲機有以下幾個特點：

1．磨片齒間槽齒寬，便于高濃度進料，進料量大，大塊或者較長的原料都可以比較容易的進入磨區。

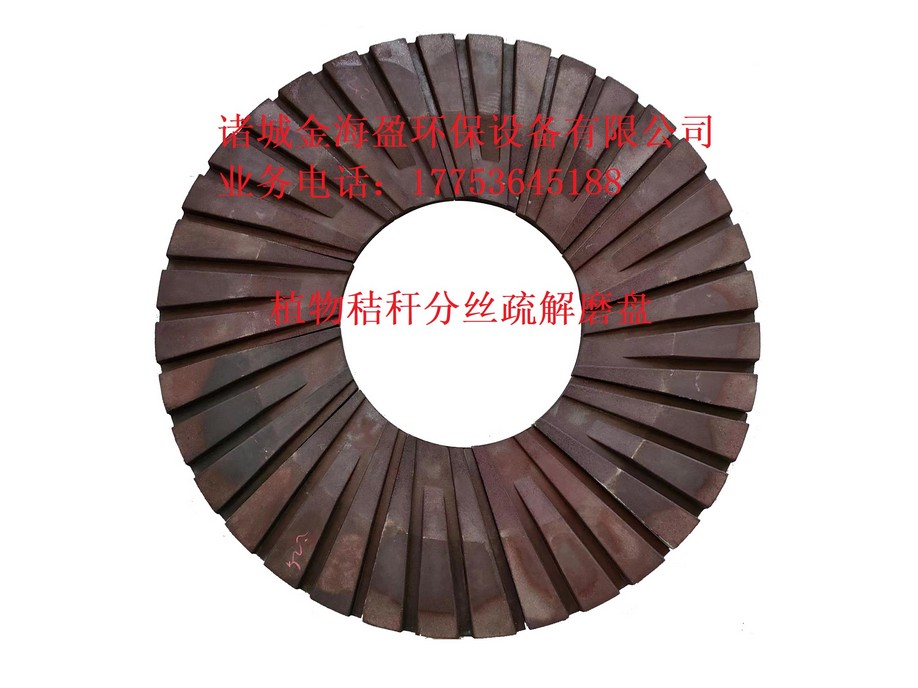

2．磨盤采用特殊原料模壓成型，經高溫烘烤而成。磨片表面類似于磨刀石，略有粗糙感，在秸稈研磨過程中切不斷纖維，特別適用于闊葉木和速生植物秸稈，這些原料特點就是纖維短、強度低，在研磨過程中容易被切斷。特別是對于煙筋、麥草、稻草、龍須草、甘蔗渣等速生植物，本身植物纖維就短的原料，有很好的保護作用。

3．動盤采用合金鑄造磨盤，因為合金磨盤可以校正動平衡，拆卸方便。配合樹脂砂磨盤使用，通過量大，纖維壓潰疏解效果好，磨漿時纖維升溫速度快，纖維軟化好，疏解帚化效果好。樹脂砂磨盤與合金磨盤可以互換的，可以根據原料要求更換磨片，一對合金配套或者一片合金一片樹脂磨盤使用。

4、對原料適應范圍廣，例如：稻草、麥草、蘆葦、棉桿、甘蔗渣、沙柳等。

二、The main features are as follows：

1．The tooth surface of the grinding plate and the feed groove are both wide, which is beneficial to high-concentration feeding and large feed volume，Coarse or long raw materials can easily enter the grinding zone.。

2．The grinding disc is molded with special raw materials and baked at high temperature. The surface of the millstone is similar to a millstone, which has a little rough feeling. The fiber will not be cut off during the grinding of straw, and it is especially suitable for hardwood and fast-growing plant straw. These raw materials are short fibers and low strength, which are easy to be cut off during grinding。Especially for fast-growing plants such as tobacco, wheat straw, rice straw, Chinese alpine rush, bagasse, etc., the raw materials with short plant fibers have a good protective effect.。

3、The dynamic disk adopts alloy casting grinding disc, because the alloy grinding disc is suitable for correcting dynamic balance and easy to disassemble. When used with resin sand grinding disc, it has large throughput, good fiber crushing and defibering effect, fast fiber heating speed during pulping, good fiber softening and good defibering effect。The positioning dimensions of the resin grinding disc and the alloy grinding disc are the same, and the grinding disc can be replaced according to the requirements of raw materials。Two pairs of alloy grinding plates or one pair of alloy grinding plates and one pair of resin grinding plates are used.

4、Wide adaptability to raw materials, such as rice straw, wheat straw, reed, cotton stalk, bagasse, Salix psammophila, etc.
