秸稈拆解揉絲機 Straw disassembling and kneading machine

一、秸稈拆解揉絲機概述：

低溫制漿技術是未來發展的趨向，有節約熱源能耗、提高纖維質量，提高漿得率的優點。拆解揉絲機是我公司設備技術人員開發研制的一款錘擊拆解分絲篩選設備，是新能源清潔制漿的粗備料設備。

一、Overview of straw disassembling and kneading machine：

Low temperature pulping technology is the development trend in the future.，Energy consumption of heat source can be saved、Improve fiber strength，And the fiber yield is improved。Hammer-type stalk disassembling machineIt is a dry material preparation equipment developed by our company's technicians，It is a coarse material preparation equipment for clean pulping。

二、秸稈拆解揉絲機的工作原理：

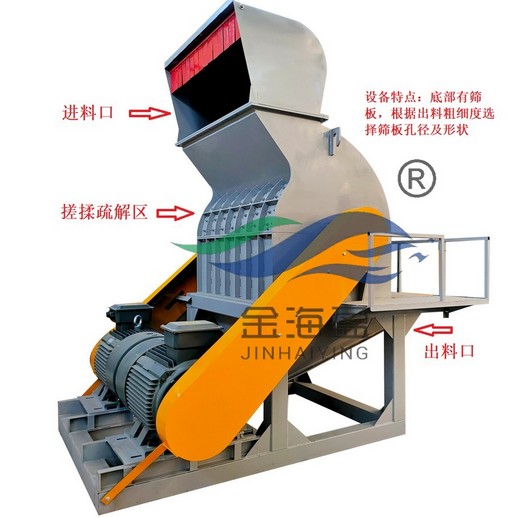

拆解揉絲機原理是利用錘片的擊打、推揉力量將竹片、木片、稻草、麥草、蘆葦?shù)仍?/span>拆解、分絲細化的設備。錘片安裝在中間傳動的轉子上，轉子高速旋轉產生的離心力讓錘片向四周輻射張開，產生強烈?guī)岷偷膿舸蛉啻炅α浚?/span>配合設備內部類似于搓衣板的襯板反揉搓作用將原料擊打撕裂分絲。設備下半部是過濾篩板，出料大小、細度由篩板孔徑的大小來控制。網孔大則出料粗，網孔小則出料細。用于草料揉絲時需要配置高壓引風機引力出料，防止物料被揉搓時間過長損傷纖維。配和拉料風機加快出料速度，降低設備內部溫度。

二、Working principle of straw disassembling and kneading machine：

The principle of straw disassembling and kneading equipment is to disassemble, shred and refine bamboo chips, wood chips, straw, wheat straw, reed and other raw materials by using the beating and kneading power of hammer。The hammer piece is installed on the intermediate transmission rotor, and the centrifugal force generated by the high-speed rotation of the rotor makes the hammer piece radiate and spread around, generating a strong and gentle beating and kneading force, and the raw materials are beaten and torn to separate wires in cooperation with the anti-kneading effect of the lining plate similar to the clothes rubbing plate inside the equipment。The lower part of the equipment is a filter sieve plate, and the size and fineness of the discharge are controlled by the size of the sieve plate aperture. Large mesh leads to coarse discharge and small mesh leads to fine discharge.When it is used for grass kneading, it is necessary to configure high pressure induced draft fan to pull out material to prevent the material from being kneaded for too long to damage the fiber. Equipped with pulling fan to speed up the discharging speed and reduce the internal temperature of the equipment.

三、設備的優勢和特點：

該設備采用雙電機傳動，保證設備電流的穩定性。適于多種原料的分絲：一是分解竹片、木片；二是拆解草類秸稈，將秸稈內部夾雜的塵土及芯部白膜分離出來。破壞麥秸桿外皮的光膜利于吸水；拆解后的原料吸水速度快，蒸煮熟化時間短，方便后續進入高濃磨漿機磨料。

三、Advantages and characteristics of equipment：

The equipment adopts double motor drive to ensure the stability of the equipment current.Suitable for a variety of raw materials: one is to decompose bamboo pieces, wood pieces;Second, dismantling the straw, the straw mixed in with the internal dust and core white membrane separation.Destroying the light film of wheat straw skin is beneficial to water absorption.The disassembled raw material has fast water absorption speed and short cooking and ripening time, which is convenient for subsequent entry into the abrasive of the high concentration pulping machine.
